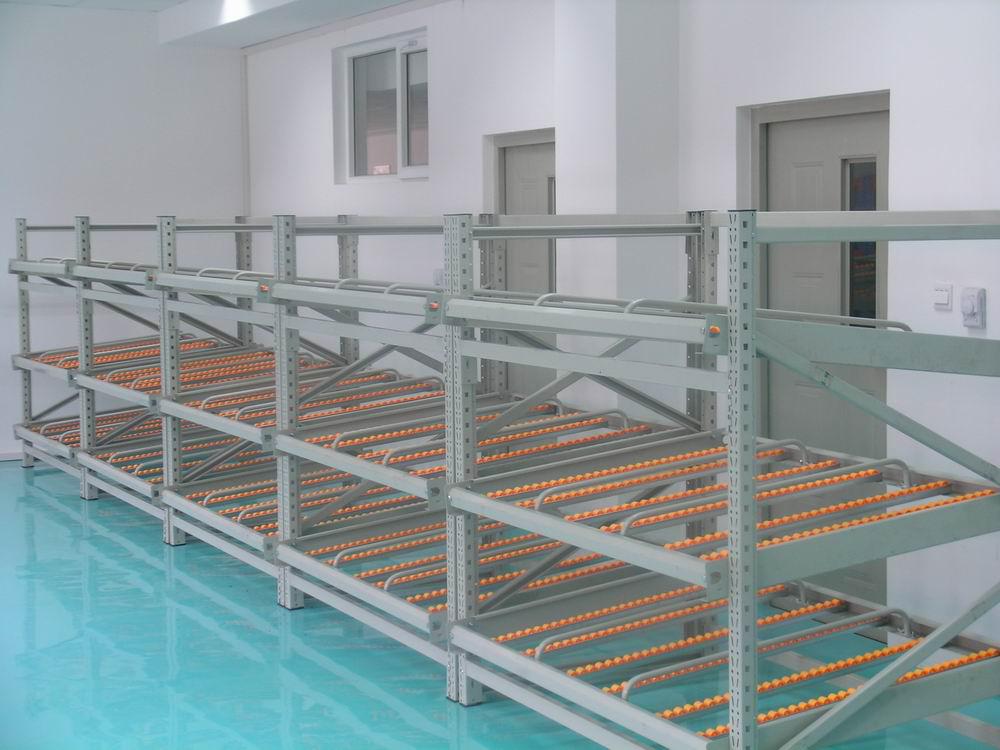

Fluently between shelves each layer and beams set roller type aluminum alloy or metal flow force strip, a certain slope place, through the raceway the goods from the picking end transported to the end to pick up goods (usually paper packaging or placed in the plastic turnover box) by means of gravity gliding automatically, can realize "advanced first in first out" operation, the use of low cost storage speed is fast, high density, suitable for assembly line on both sides of the process of conversion, distribution center picking and other places, with electronic label goods information management, which are widely used in supermarket, medicine, chemical industry and electronic industry.

The details are as follows:

1, each layer of adjustable spacing for a 50mm, can also be fine tuned by hanging;

2, the recommended minimum spacing selection of goods (Zhou Zhuanxiang) height +200mm, also can be adjusted according to the need of the integer 50mm;

3 fluent, according to L N and the number of turnover box is determined, fluent length is N*L+100mm;

4, the tilt angle can be adjusted, the standard is 3 degrees;

5, fluent in a form of D13, D28, D28F (flange);

6, shelf finishing: hot curing powder coating, the standard color is sky blue, can also be based on customer demand color selection;

7, can be designed according to customer requirements;

Width according to the appearance and the size of the customer turnover box length (d) x width (W) x height (H) to determine the width = slideway x (W + 50) + 20 + column, per unit total load is less than or equal to 1000 kg.
